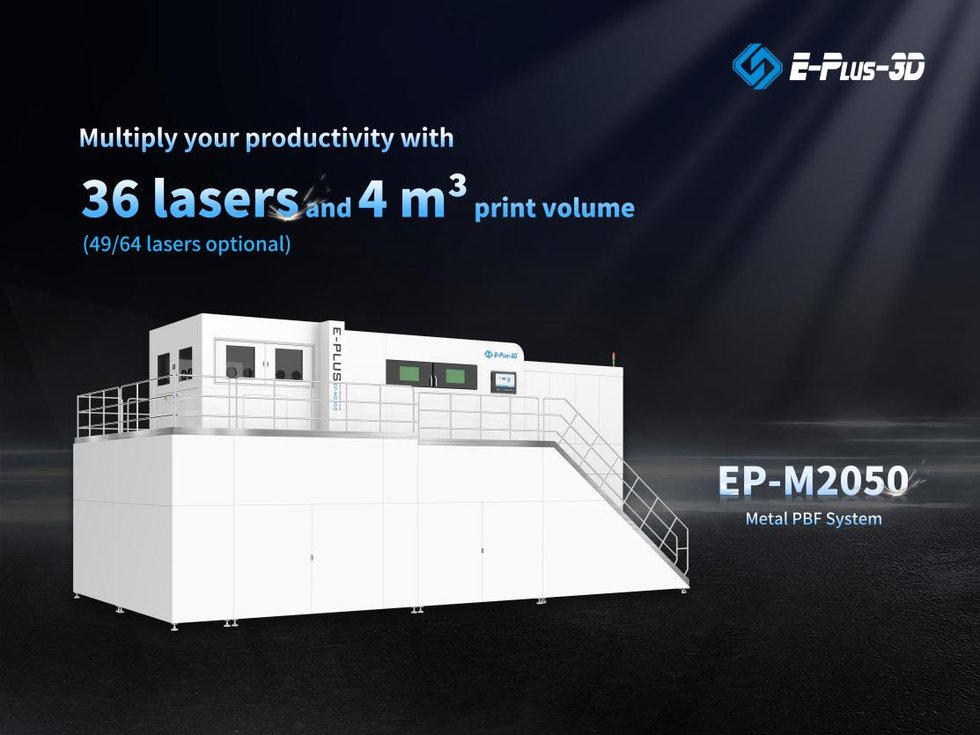

EP-M2050 Metal 3D Printer Features
Breakthrough Of Size Limits And Efficiency
-
A large forming chamber, reaching up to 2050 x 2050 x 1100 mm (with a customizable Z-axis up to 2000 mm), is equipped to handle one-piece forming of large-sized components and parts mass production.
-
The printer is capable of printing at speeds of up to 1080 cm³/h, with 36 lasers simultaneously engaged in the printing process, which enables the printer to achieve uniform and consistent full-size printing.
What can EP-M2050 print?
Active Cooling Expansion Section
-
Process: Metal Powder Bed Fusion (MPBF)
-
Size: 1940 x 240 mm2
-
Machine: EP-M2050(36/49/64 Lasers)
-
Application: Aerospace And Aviation
Technical Specifications
|
Machine Model |
EP-M2050 |
|
Build Volume (X x Y x Z) (height incl. build plate) |
2050 x 2050 x 1100 mm (80.71x80.71x43.31 in) |
|
Optical System |
Fiber Laser 36 / 49 / 64 x 500 W (700 W and 1000 W are optional) |
|
Spot Size |
70 - 120 μm |
|
Max Scan Speed |
8 m/s |
|
Layer Thickness |
20 - 120 μm |
|
Theoretical Printspeed |
Up to 1080 cm³/h |
|
Material |
Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc. |
|
Power Supply |
380 V, 50 / 60 Hz, 117 kW |
|
Gas Supply |
Ar / N2 |
|
Oxygen Content |
≤ 100 ppm |
|
Dimension (W x D x H) |
12685 x 7185 x 6530 mm |
|
Weight |
145000 kg |
|
Software |
EPControl, EPHatch |
|
Input Data Format |
STL or other Convertible File |
